512M 메모리 내장. 리눅스 기반의, 작은 빔프로젝터를 만드는데 딱 좋은 스펙입니다. TI가 기본 제공하는 GStreamer/OpenGL ES Shader에 담긴, a) Vertex Shader로 Skew를, b) Fragment Shader로 Edge Blending을 60fps 속도로 처리합니다.

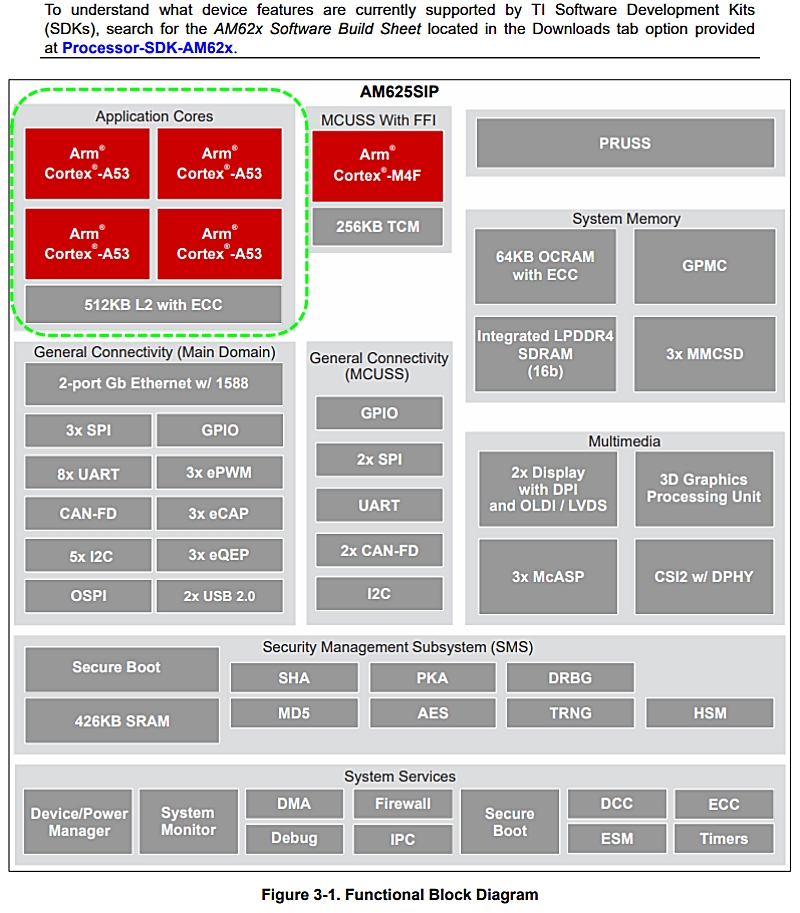

The AM625SIP (System in Package) Sitara™ MPU with integrated LPDDR4 is an application processor built for Linux development. The system in package integrates 512MB of LPDDR4 with the AM6254 device which has 4x Arm® Cortex®-A53 performance and embedded features, such as: dual-display support, 3D graphics acceleration, along with an extensive set of peripherals that make the System in package well-suited for a broad range of industrial applications while offering intelligent features and optimized power architecture. Additionally, the AM625SIP offers a simplified hardware design, increased robustness, optimized size/system BOM, and power consumption savings all enabling faster software and hardware development.

1) Processor Cores : Quad-core Arm® Cortex®-A53 up to 1.4GHz, and Single-core Arm® Cortex®-M4F MCU at up to 400MHz.
2) Multimedia : 1920x1080 @ 60fps for each display, 3D Graphics Processing Unit.
